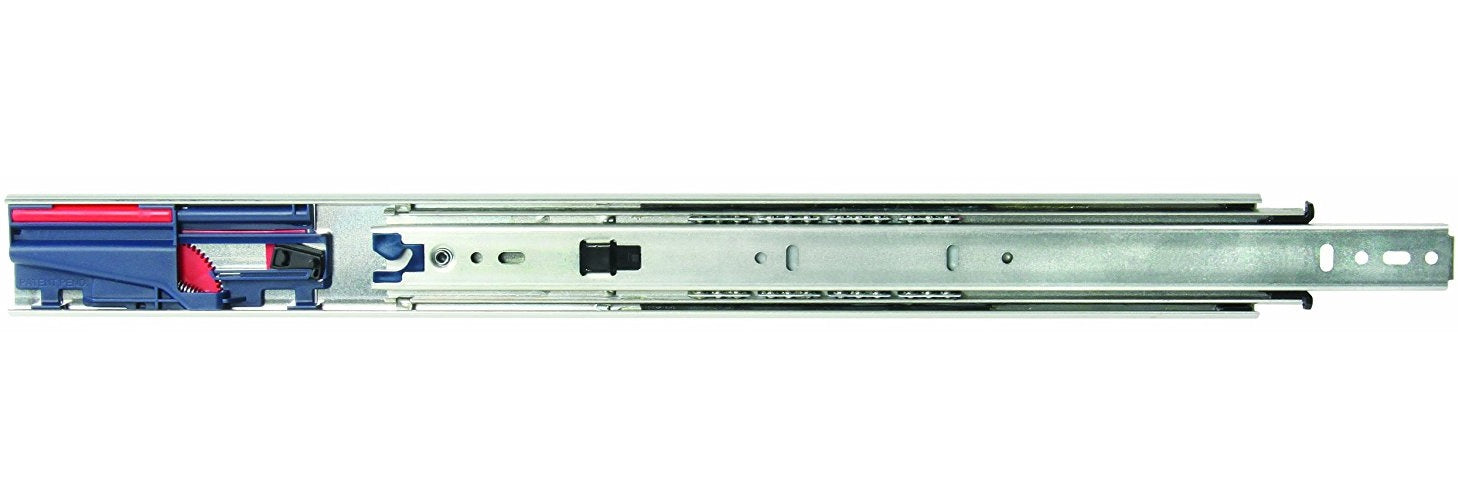

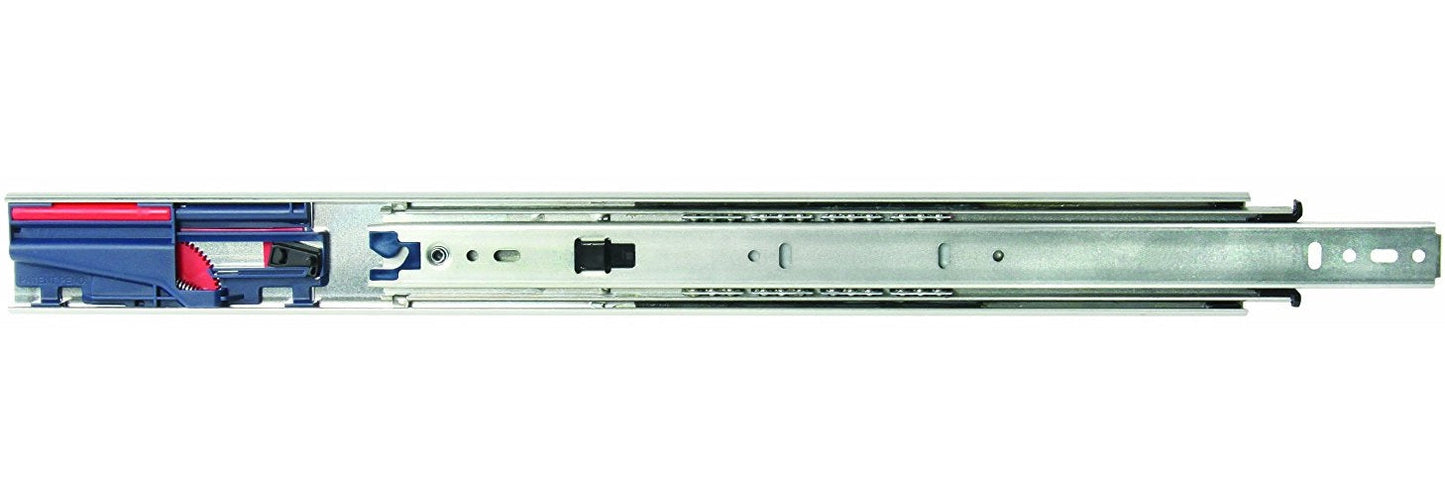

Knape & Vogt 8450FMP 20 Soft-Close Drawer Slide With Screw, 20" L x 24" W

Highlights:

• Length: 20"
• Height: 1-13/16"
• Width: 24"
• Finish: Anochrome
• Load Capacity: 75 - 120 Lbs
• Bearing Type: Ball
• Mounting Type: Side
• Soft-Close - Full extension
• 100 Pound class load rating
• Designed for use on box drawer applications up to 24" wide where the maximum weight load is not to exceed 100 pounds
• Product features a "soft-close" module that eliminates drawer slamming
• Clearance required: 1/2" plus 1/23" minus 0"
• Patented force management (fm) soft-close mechanism
• 32 mm hole pattern with direct access mounting
• Lever disconnect for easy drawer removal
• Optional rear mount brackets
• Telescopic movement on ball bearings
