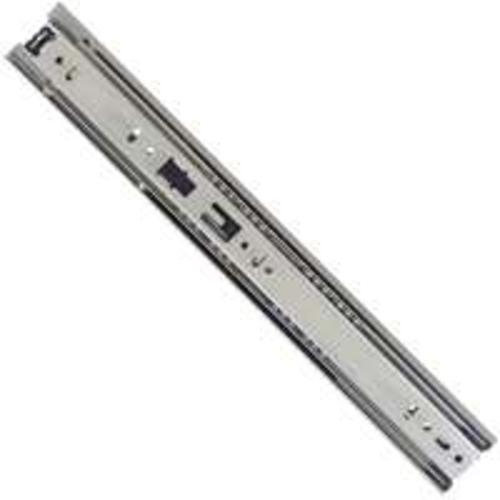

Kanpe & Vogt 8400P14 Precision Drawer Slide 14"

"Knape & Vogt" Drawer Slides

• 14"
• Anochrome
• Poly Pack
• Silde Mount
• Full Extension
• 100 Pound Class Load Rating
• Medium-duty, precision slides for box drawer or pedestal file drawers up to 24" wide
• For frame and frameless construction
• May be used horizontial position with a reduced load rating of 30 pounds
• Height:1-13/16" Clearance required: 1/2" plus 1/32" minus 0 each side
• Features telescoping, full extension on precision steel ball bearings
• 32mm hole pattern with direct access mounting
• Lever disconnect for easy drawer removal
• Ball retainer latch and ramps, for easy drawer insertion
• Drawer adjustment without removal
• Flexible mounting tabs self-adjust to side clearance
• Metal ball retainer holds 3 bearings per inch of race for smooth and quiet motion
• Polymer stop cushions
• Non-handed
• Packaged with screws and installation instructions
